Gmax: Solid box [message #361550]

Fri, 05 December 2008 13:02

RedOne
Messages: 60
Registered: August 2006
Location: Netherlands

Karma: 0

Recruit

Hi

I have a problem with gmax.

I made a floor for a building. In this floor i had to make
some holes. Did it met subtraction a-b. But it wil not close
the sides of the hole. Now its just like i look between the
bottom and the top of the mesh (not solid). Can anyone tell me how to solve this.

Thx

Rene

Report message to a moderator

Re: Gmax: Solid box [message #361551 is a reply to message #361550]

Fri, 05 December 2008 13:33

Gen_Blacky
Messages: 3250
Registered: September 2006

Karma: 1

General (3 Stars)

screen shot ? , don't understand what you mean

http://s18.postimage.org/jc6qbn4k9/bricks3.png

Report message to a moderator

Re: Gmax: Solid box [message #361594 is a reply to message #361551]

Fri, 05 December 2008 19:21

samous
Messages: 616
Registered: August 2008

Karma: 0

Colonel

i think he means he made holes in the floor using "a-b" (what ever that means), but either:

1: the floor dissapeared, but you can walk on it
2: The floor is visable, but you go through it
3: all of the above

=samous

Samous Ind. modding group website:

and Facebook Page: here

Report message to a moderator

Re: Gmax: Solid box [message #361598 is a reply to message #361550]

Fri, 05 December 2008 20:13

MGamer
Messages: 412
Registered: January 2008

Karma: 0

Commander

you dont know of what he is talking about.... he is talking about the bolean tool to delete some parts of the floor using other objects in gmax

rawr.....

Report message to a moderator

Re: Gmax: Solid box [message #361600 is a reply to message #361598]

Fri, 05 December 2008 20:38

samous
Messages: 616
Registered: August 2008

Karma: 0

Colonel

oh... so is his question how to go through those holes? "Gmax: Solid box"

Samous Ind. modding group website:

and Facebook Page: here

Report message to a moderator

Re: Gmax: Solid box [message #361635 is a reply to message #361600]

Sat, 06 December 2008 07:17

MGamer
Messages: 412
Registered: January 2008

Karma: 0

Commander

samous wrote on Fri, 05 December 2008 21:38

oh... so is his question how to go through those holes? "Gmax: Solid box"

he is saying that he is trying to make holes like this:

http://tbn3.google.com/images?q=tbn:6JJvR0WlxSkGWM:http://www.3dcadresources.com/images/sw_simple_hole/figure6.jpg

but he gets something like

http://img155.imageshack.us/img155/2662/images1la9.jpg

rawr.....

[Updated on: Sat, 06 December 2008 07:45]

Report message to a moderator

Re: Gmax: Solid box [message #361636 is a reply to message #361550]

Sat, 06 December 2008 07:34

mrÃ£Ã§Ä·z
Messages: 3069
Registered: August 2007

Karma: 0

General (3 Stars)
Permabanned for trying and failing DDoS

Üut a grenade on your Model.

Report message to a moderator

Re: Gmax: Solid box [message #361638 is a reply to message #361550]

Sat, 06 December 2008 07:47

Di3HardNL
Messages: 1273
Registered: December 2006
Location: Netherlands

Karma: 0

General (1 Star)

If you have the problem that MGamer is talking about then i have the solution for you.

rightclick the mesh (after using boolean tool) and convert to 'editable poly' then play around with the polygons on where you want to have them (if you want more polygons then do bolean again to create more)

When you think your done choose 'element' selection. (the red box)

then in 'Edit Geometry' rollout click 'create' click on the polygons which you want to connect to each other to create a new surface.

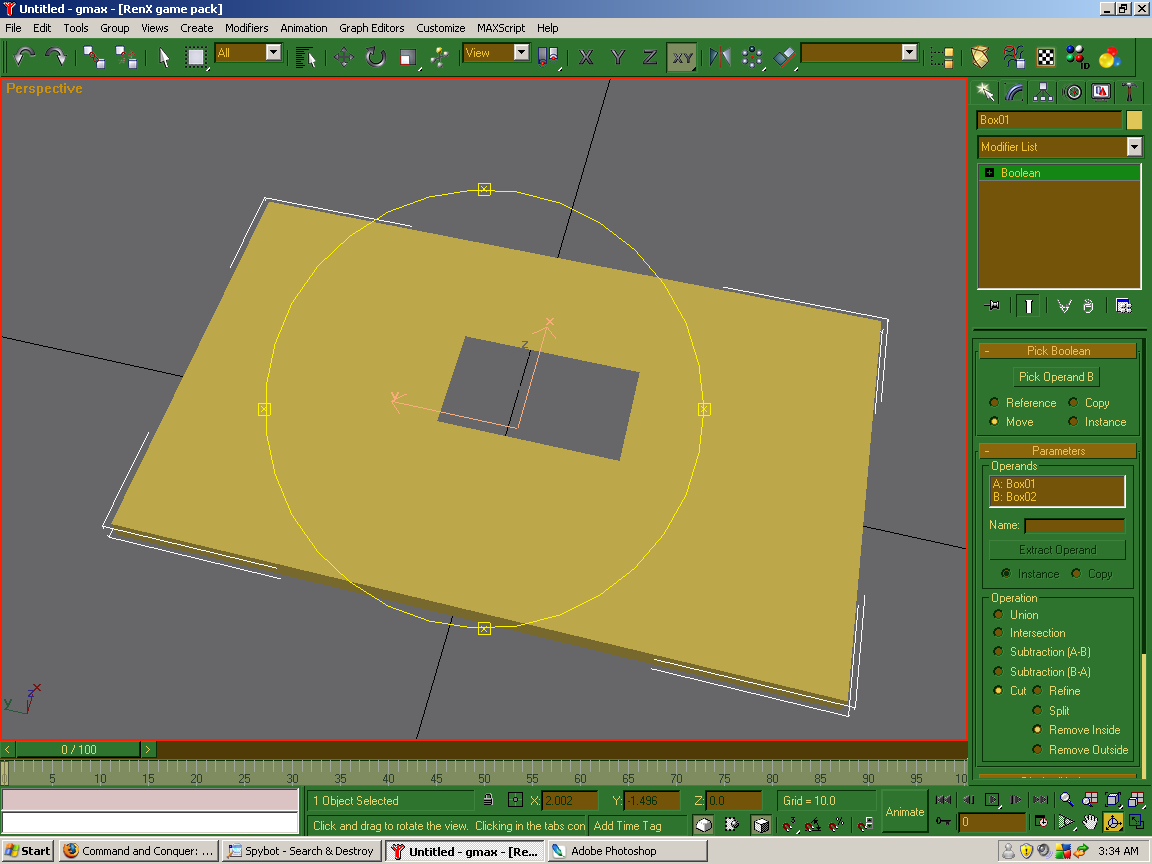

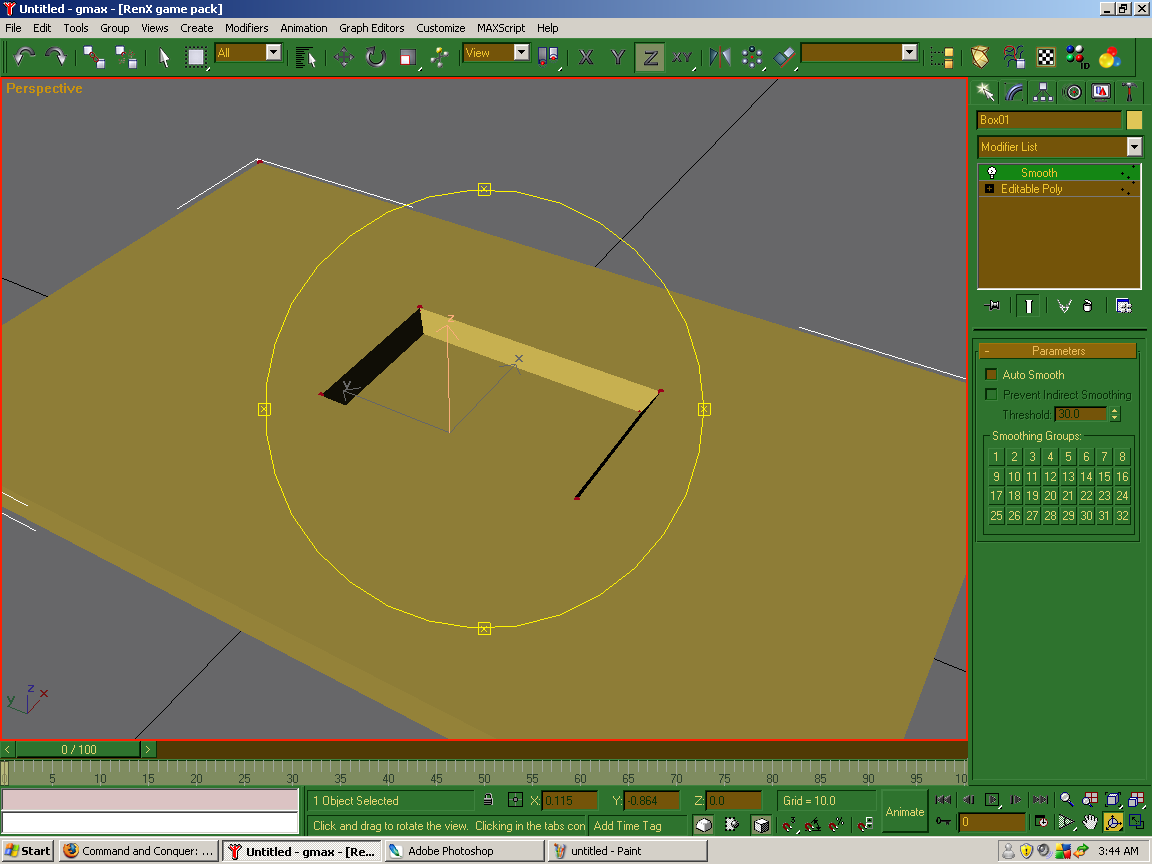

Here a sample, I used boleans 2 times. (not detailed) thats the way i should do it.

1 more tip. If you get black spots on your mesh, select your mesh and go to modifier tab and click on 'smooth' that should fix it Smile

Attachment: screenshot1.PNG
(Size: 86.50KB, Downloaded 75 times)
Attachment: screenshot2.PNG
(Size: 83.87KB, Downloaded 77 times)

http://i236.photobucket.com/albums/ff5/Di3HardNL/Di3Logo-1.jpg

Visit My website to download all kind of models for Renegade! Also learn how to create your own stuff with my tutorials!
www.renegademodels.tk

Check out my video's on my Youtube profile!
http://www.youtube.com/user/Di3HardNL

Report message to a moderator

Re: Gmax: Solid box [message #362011 is a reply to message #361638]

Mon, 08 December 2008 17:28

RedOne
Messages: 60
Registered: August 2006
Location: Netherlands

Karma: 0

Recruit

Thx all for your replies. I will try it.

The problem was something like Mgamer said. If I have a box like 2cm high. And I use boolean I did look between de bottomand the top of the box.

When I restarted the map (filesize problems) and I dont use texture then the problem is also gone. Is your answer also the answer for textured meshes.

I am sorry didnt any screenshots here. Next time I will

@Di3hard: I try it later. Maybe its easier and better the the way I use now :)Its bed time now Smile

GrTz Rene

[Updated on: Mon, 08 December 2008 17:37]
