| New versions of the w3d import script and export plugin available [message #480694] |
Fri, 10 May 2013 20:50  |
|
|
You can download it from http://www.cncmods.net/files/w3dimport.zip
To use it, just unzip into your 3ds max 8 folder. You need 3ds max 8 Service Pack 3 installed. And no, there will NOT be a GMAX version of this stuff so dont ask.
If you have a previous version of the importer installed you need to look for (and delete) the w3d-importer.mse file if it exists.
The "source" folder contains the source code to the w3dms.dlx plugin.
It also includes the dds fix for max8 to make dds files work properly.
The export plugin is the same one I released previously.
The following changes have been made to the export plugin as distributed with the last release of the BFME2 Mod SDK:
enable Specular To Diffuse checkbox on material editor vertex materials tab
enable Translucency edit box on material editor vertex materials tab
enable Secondary Gradient drop-down on material editor shaders tab
enable Publish button on material editor textures tab
enable Frames edit on material editor textures tab
enable Rate edit on material editor textures tab
enable Animation Type drop-down on material editor textures tab
enable Pass Hint dropdown on material editor textures tab
enable Alpha Bitmap button on material editor textures tab
enable Null (LOD) radio button on geometry options box
enable Shatter checkbox on geometry options options box
enable collision options box (and the physical, projectile, vehicle, vis and camera checkboxes inside it)
enable damage region edit box on object export options box
enable phys, proj and vis buttons on select by W3D type box
add support so that dazzles are correctly exported
add support for some things related to smooth skinning (a feature that's comming in the next scripts build for Renegade, mod teams already have it)
add support for some things related to export of tangent/binormal data (needed for certain shader effects and will be supported in a future scripts build)
Renamed the old (and useless) npatch checkbox so that it toggles whether to export tangent/binormal data.
As for the importer, the following changes have been made since the last public release:
Correctly set "Export Geometry" on proxies.
Correctly import UVs, vertex colors and materials (lots of fixes in this area, too many to list)
Make the importer no longer read from the old gamepacks\blah folder (a remnant from when the importer was a gmax script)
Automatically tick the "vertex colors" checkbox for vertexes that need it ticked.
Fix a crash issue with animation importing.
Fix positioning of the importer dialog boxes if you have more than one monitor.
Fix so that skinned meshes import correctly.
Not all animations correctly import at this point but I am working on it.
Things the importer wont be able to import properly due to limitations in 3ds max, the w3d file format and w3d:
Multimaterials.
Objects set to NULL (LOD)
There is a mis-named mesh in the Renegade GDI Medium Tank that causes that particular vehicle to crash when you try to import it. Its not fixable in the importer, the w3d file is just incorrect.
Please let me know of any meshes that don't properly import or any other missing features or things I should add (that haven't already been covered above)
Jonathan Wilson aka Jonwil
Creator and Lead Coder of the Custom scripts.dll
Renegade Engine Guru
Creator and Lead Coder of TT.DLL
Official member of Tiberian Technologies
|
|
|
|
|
|
| Re: New versions of the w3d import script and export plugin available [message #480716 is a reply to message #480694] |
Sat, 11 May 2013 18:00  |
|
|
I already said there will NOT be a GMAX version of this.
As for that W3D file, it doesn't import right now due to animation issues but that will be sorted when I finish rewriting the animation code.
Jonathan Wilson aka Jonwil
Creator and Lead Coder of the Custom scripts.dll
Renegade Engine Guru
Creator and Lead Coder of TT.DLL
Official member of Tiberian Technologies
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Re: New versions of the w3d import script and export plugin available [message #484490 is a reply to message #480694] |
Mon, 18 November 2013 16:47 |
trunkskgb
Messages: 214
Registered: September 2003
Karma: 0
|
Recruit |
|
|
I cannot get mine to work. I installed SP3. I downloaded Jonwil's zip file, and extracted all the folders within into my directory. After reading the other post,I tried but I keep getting errors.

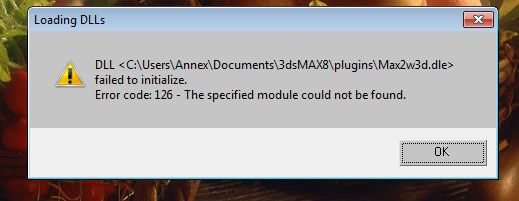

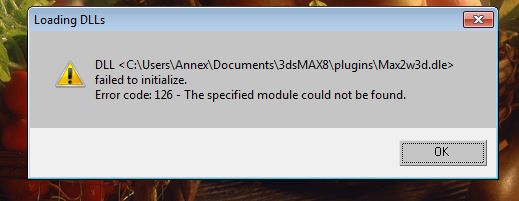

When I launch 3ds I get an initialization error with the Max2w3d.dle
I'm new to 3ds max, so I'm not sure "which" questions I should ask.
Basically, I just want to use this to make maps, and so far I cannot set the collision settings on my objects. I'm sure this tool adds way more than that though.
Can anyone elaborate a bit more?
Thank you
My Renegade Maps
C&C Backstab || Rigdeline_b8 || C&C Halloween 2014 || Iron City (LE design) || Christmas Map (drafting)
|
|
|
|
|
|
|
|
| Re: New versions of the w3d import script and export plugin available [message #485090 is a reply to message #480694] |
Tue, 31 December 2013 03:10 |
|
|
Just wanted to let everyone know that I will hopefully resume working on this sometime soon (specifically the animation stuff)
If anyone has any w3d files that wont correctly import for reasons OTHER than multimaterial meshes, please let me know so I can investigate. Yes that includes files where the animation wont properly import.
Bonus points if someone can show me a file where they have an original source file which when exported to w3d and imported back into max will not correctly import the animation. (as having a source file will make it easier to get the animation to work properly)
"Wont correctly import" does include models where manual steps are required after the model is imported (in that case please specify the manual steps required so I can figure out if its possible to make the importer do that somehow)
I am not promising anything, just saying that I may have some time to work on this in the near future.
Jonathan Wilson aka Jonwil
Creator and Lead Coder of the Custom scripts.dll
Renegade Engine Guru
Creator and Lead Coder of TT.DLL
Official member of Tiberian Technologies
[Updated on: Tue, 31 December 2013 03:17] Report message to a moderator |
|
|
|
