| Map terrain shows up as black in RenX [message #458257] |
Sat, 22 October 2011 03:07  |
iRANian
Messages: 4308
Registered: April 2011
Karma: 0
|
General (4 Stars) |
|
|
I'm trying to modify Islands' terrain but it shows up as black when I import it in RenX. From what I'm told I have to re-texture the .w3d. Is there any way to have all the different sections of the model show up with different colours?
-

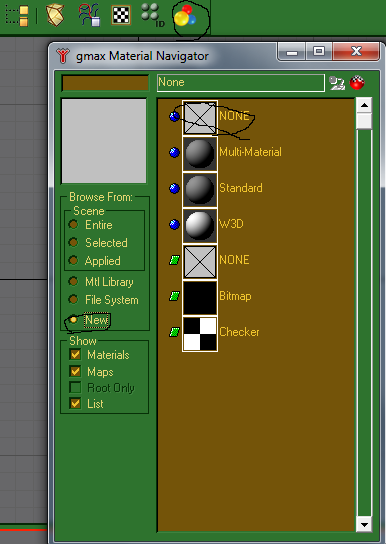

Attachment: Untitled.png
(Size: 184.27KB, Downloaded 127 times)
Long time and well respected Renegade community member, programmer, modder and tester.
Scripts 4.0 private beta tester since May 2011.
My Renegade server plugins releases
|
|
|
|
|
|
|
|
|
|
|
|
| Re: Map terrain shows up as black in RenX [message #458308 is a reply to message #458257] |
Sat, 22 October 2011 18:20  |
Blazea58
Messages: 408
Registered: May 2003
Karma: 0
|
Commander |
|
|
You should probably just open a new scene, hit File then Reset. Say yes to the dialog popup, and then try using File / Merge, and find your map and open it. Select all to merge and then hit ok.
If your textures are still showing up black, maybe there is something more to it. You could have just as easily selected the wrong driver for when you installed.

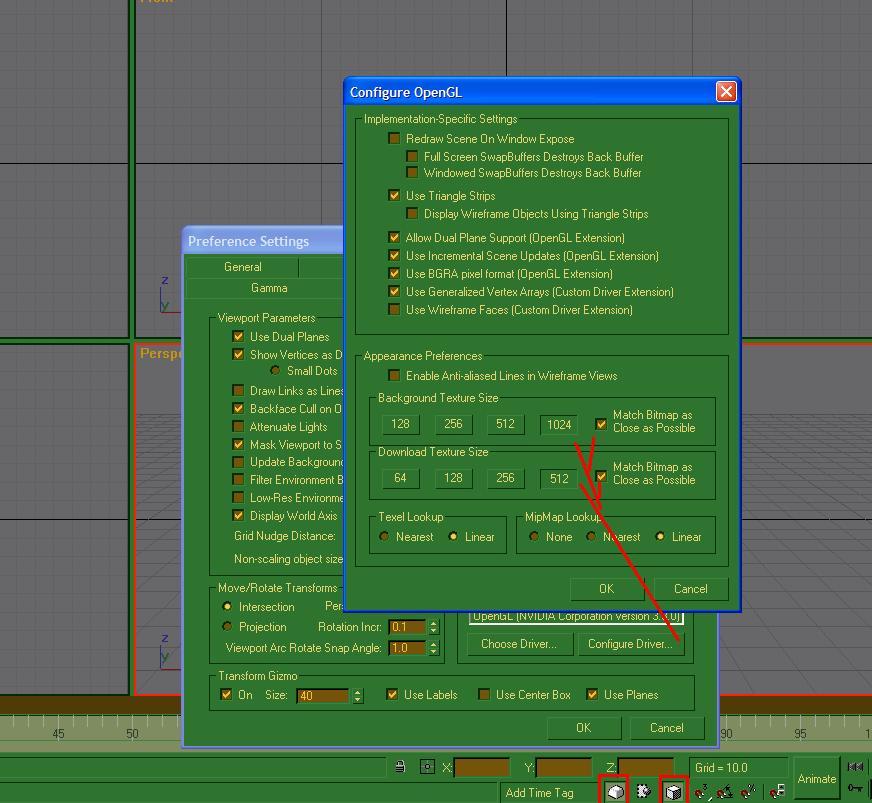

Try Customize / Preferences / Then to the viewport tab \ Display drivers / Choose Drivers / Open GL. Also try configuring the driver as shown in the picture i uploaded. Take note of those two other buttons i had on the bottom, those are useful for seeing the map when you rotate etc.
If it still!!! shows up black, maybe you forgot to add all your textures in the format. They need to be .Tga.
[Updated on: Sat, 22 October 2011 18:22] Report message to a moderator |
|
|
|
